Euler's Disk

Euler's disk is a fascinating physics toy. When you give it an initial spin on a smooth surface, it begins spinning and rolling (spolling) on its own.





The spolling action of Euler's disk is similar to what happens when you spin a coin on a flat surface, but it lasts much longer!

Click on the link below to see a video of Euler's disk in action.

http://www.youtube.com/watch?v=nEF7fBvX_4Y (opens in new window)

It's very interesting how the disk spins faster and faster as time goes on. The reason for this will be investigated.


Analysis Of Euler's Disk

To analyze the physics of Euler's disk let's start off by drawing a schematic (shown below) which illustrates the disk spolling on a flat surface.

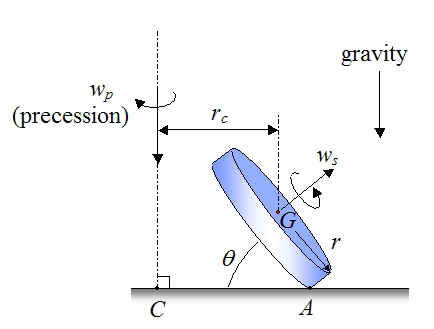

Detailed schematic of Eulers disk

Detailed schematic of Eulers disk 2

Where:

ws is the rate of spin of the disk, in radians/second

wp is the rate of precession, in radians/second

A is the contact point between the disk and the flat surface

C is the point where the axis of precession intersects the flat surface

rc is the horizontal distance from the axis of precession to the center of mass G of the disk, as shown. It is assumed that the center of mass of the disk coincides with the geometric center of the disk.

r is the radius of the disk

θ is the angle between the horizontal and the disk


To analyze the physics of Euler's disk as simply as possible, we shall treat ws, wp, and θ as constant. In reality, these quantities slowly change with time (e.g. the angle θ slowly gets smaller as the disk is spolling). However, since the rate of change of these quantities is small, approximating them as constant is reasonable.

Further simplifying assumptions include:

• The disk rolls on the flat surface without slipping

• The disk is thin relative to its radius

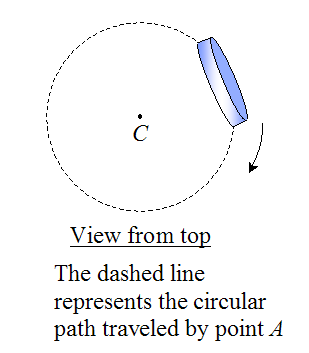

• The disk rolls such that rc = 0. This is approximately true as θ becomes small. This means that the diameter of the circular path traveled by point A (represented by the dashed line) approaches the diameter of the disk as θ becomes smaller. You can see this is approximately true by looking at the previous video showing a spolling disk.


With simplifying assumptions in mind, let's now redraw the schematic. The disk is treated as "thin" such that the thickness can be neglected.

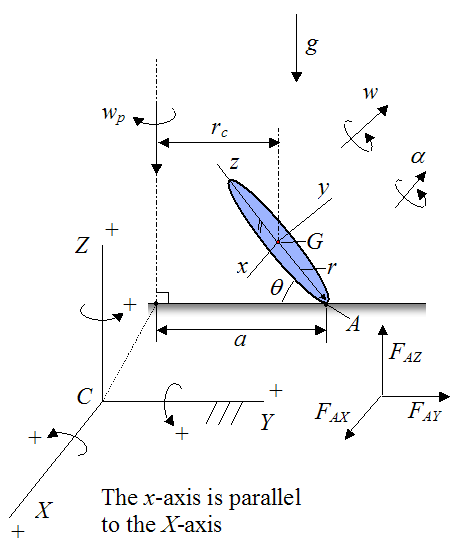

Detailed schematic of Eulers disk 3

Where:

A global XYZ axes is defined as shown, with origin at point C, and fixed to ground

A local xyz axes is defined as shown, with origin at point G, and attached to the disk so that it moves with the disk. Note that this axes is aligned with the principal directions of inertia of the disk. Also note that the local x-axis is parallel to the global X-axis

g is the acceleration due to gravity

w is the angular velocity of the disk, with respect to ground

α is the angular acceleration of the disk, with respect to ground

a is the distance from point C to point A

FAX is the force acting on the disk in the global X-direction, at point A

FAY is the force acting on the disk in the global Y-direction, at point A

FAZ is the force acting on the disk in the global Z-direction, at point A


Lastly, we shall define I, J, and K as unit vectors pointing along the positive directions of the global X, Y, and Z axis respectively


The angular velocity of the disk, with respect to ground, is

Angular velocity of Eulers disk


The angular acceleration of the disk, with respect to ground, is

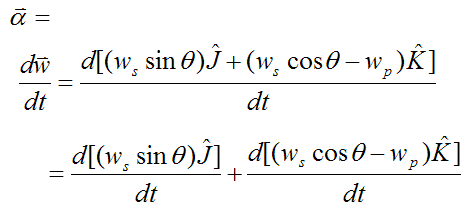

Angular acceleration of Eulers disk


Looking at the first term:

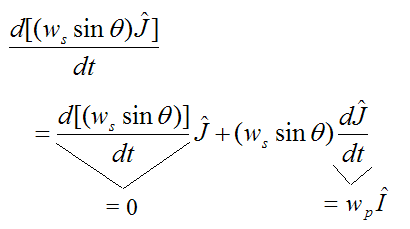

Angular acceleration of Eulers disk 2


Looking at the second term:

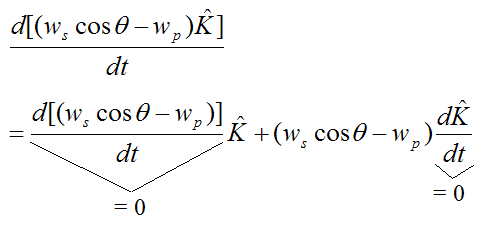

Angular acceleration of Eulers disk 3

Therefore, for the disk

Angular acceleration of Eulers disk 4


Note that the terms dJ/dt and dK/dt are calculated using vector differentiation. To learn more about it visit the vector derivative page.


For the general case of slipping between disk and surface, the velocity of point A (on the disk) is calculated by adding the linear velocity of point A due to precession (awp), to the linear velocity of point A due to the spin of the disk (rws). These two linear velocities are acting in opposite directions, so the following equation results:

Relative velocity at contact point A on Eulers disk

where

Distance between point C and point A on Eulers disk

For rolling without slipping, VA = 0. Therefore

Equation for rolling without slipping at point A on Eulers disk

and

Equation for relating ws and wp on Eulers disk

Now, for rc = 0 we have

Equation for relating ws and wp on Eulers disk when rc is 0

This expression conveniently relates ws and wp.


By Newton’s Second Law:

Newtons second law for Eulers disk

Where:

m is the mass of the disk

aGX is the acceleration of point G in the global X-direction

aGY is the acceleration of point G in the global Y-direction

aGZ is the acceleration of point G in the global Z-direction


If rc = 0 then point G is stationary, which means that the acceleration of point G is zero. Looking at the above three equations we see that they are equal to zero, as a result. This means that FAX = 0, FAY = 0, and FAZ = mg.

Next, apply the Euler equations of motion for a rigid body, given that xyz is aligned with the principal directions of inertia of the disk (treated as a solid disk).

We have,

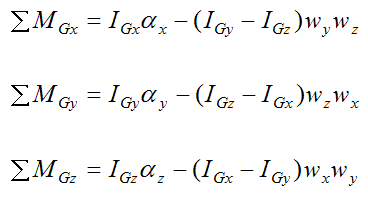

Moment equations for Eulers disk

Now,

Angular velocity of Eulers disk resolved onto xyz

This is the angular velocity of the disk (with respect to ground) resolved along the local xyz axes.

Furthermore,

Angular acceleration of Eulers disk resolved onto xyz

This is the angular acceleration of the disk (with respect to ground) resolved along the local xyz axes.

Thus, the second and third equations (of Euler's equations) are equal to zero. Therefore ΣMGy = 0 and ΣMGz = 0. As a result, the second and third equations do not contribute to the solution.

Therefore, we only need to consider the first equation:

Moment equation for Eulers disk 2

Where:

ΣMGx is the sum of the moments about point G, in the local x-direction.

IGx, IGy, and IGz are the principal moments of inertia of the disk about point G about the local x, y, and z directions (respectively).

By symmetry (treat the disk as a thin circular disk),

Symmetric moment of inertia of Eulers disk about x z

and

Moment of inertia of Eulers disk about y

Now,

Moment equation about x for Eulers disk

This is the sum of the moments in the x-direction about point G.

Substitute this into equation (2) and we get

Moment equation about x for Eulers disk 2

Now, substitute IGx, IGy, IGz, αx, wy, wz, and equation (1) into the above equation. We get

Moment equation about x for Eulers disk 3

Thus,

Final equation for Eulers disk

This informative result tells us that as θ→0, wp goes to infinity. This is consistent with the rapid speed increase we see in a real Euler's disk as θ becomes small. The reason for this is because the right side of equation (3) contains a sinθ term, which goes to zero as θ→0. This means that (mathematically speaking) wp must increase to a large value.

However, the above formula for wp is an idealized result. In reality there is a bit of slipping (friction) at point A and some rolling resistance as well. This would affect the solution somewhat if taken into account.

As Euler's disk loses energy due to friction and rolling resistance losses, it also loses gravitational potential energy by an equal amount. This means that the center of mass G of the disk must gradually drop in height, which causes the angle θ to get smaller and smaller (as a result). This in turn causes the disk to precess faster and faster, according to the above equation. This process continues until the angle θ becomes so small that contact with the surface is inevitable and the disk is brought to a sudden halt.

Euler's disk works best when friction and rolling resistance is minimized. This is achieved on hard, low friction surfaces, such as glass.


Although the model here neglects friction, Euler's disk cannot be modeled as a conservation of angular momentum problem. This is because there is a net moment (torque) acting on the disk about its center of mass G (due to the contact force FAZ between disk and surface, at point A).


In closing, it is worth mentioning that the physics of Euler's disk is similar to the physics of a gyroscope. Their analysis is in fact very similar.
