Rotational Motion

Rotation About A Fixed Axis

Rotation about a fixed axis is a special case of rotational motion. It is very common to analyze problems that involve this type of rotation — for example, a wheel.





The figure below illustrates rotational motion of a rigid body about a fixed axis at point O. This type of motion occurs in a plane perpendicular to the axis of rotation.

Rotational motion for a rigid body


In the figure, the angle θ(t) is defined as the angular position of the body, as a function of time t. This angle can be measured in any unit one desires, such as radians, or degrees.

Every point in the rigid body rotates by the same angle θ(t).

Given the angular position of the rigid body we can calculate the angular displacement, angular velocity, and angular acceleration. These are important quantities to consider when evaluating the rotational kinematics of a problem.

A common assumption, which applies to numerous problems involving rotation about a fixed axis, is that angular acceleration is constant. With angular acceleration as constant we can derive equations for the angular position, angular displacement, and angular velocity of a rigid body experiencing rotation about a fixed axis.

The easiest way to derive these equations is by using Calculus. The derivations that follow are of the exact same form as the equations derived for rectilinear motion, with constant acceleration.

The angular acceleration is given by

Constant angular acceleration in terms of second derivative for rotational motion

where α is the angular acceleration, which we define as constant.

Integrate the above equation with respect to time, to obtain angular velocity. This gives us

Integrate angular acceleration to obtain angular velocity for rotational motion

where w(t) is the angular velocity and C1 is a constant.

Integrate the above equation with respect to time, to obtain angular position. This gives us

Integrate angular velocity to obtain angular position for rotational motion

where θ(t) is the angular position and C2 is a constant.


The constants C1 and C2 are determined by the initial conditions at time t = 0. The initial conditions are:

At time t = 0 the angular position is θ1.

At time t = 0 the angular velocity is w1.

Substituting these two initial conditions into the above two equations we get

Solving for constants in angular position and angular velocity equations for rotational motion

Therefore C1 = w1 and C2 = θ1.


This gives us

Equations for angular position and velocity for constant angular acceleration for rotational motion


For convenience, set θ(t) = θ2 and w(t) = w2. As a result

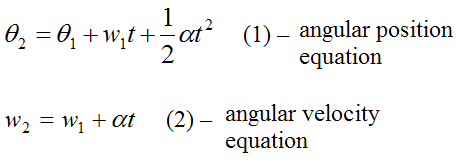

Equations for angular position and velocity for constant angular acceleration for rotational motion2


Angular displacement is defined as Δθ = θ2θ1. Therefore, equation (1) becomes

Angular displacement equation for constant angular acceleration for rotational motion


If we wish to find an equation that doesn’t involve time t we can combine equations (2) and (3) to eliminate time as a variable. This gives us

Second angular velocity equation for constant angular acceleration for rotational motion


Equations (1), (2), (3), and (4) fully describe the rotational motion of rigid bodies (or particles) rotating about a fixed axis, where angular acceleration α is constant.

For the cases where angular acceleration is not constant, new expressions have to be derived for the angular position, angular displacement, and angular velocity. If the angular acceleration is known as a function of time, we can use Calculus to find the angular position, angular displacement, and angular velocity, in the same manner as before.

Alternatively, if we are given the angular position θ(t) as a function of time, we determine the angular velocity by differentiating θ(t) once, and we determine the angular acceleration by differentiating θ(t) twice.

For example, let's say the angular position θ(t) of a particle is given by

Example angular position of particle as function of time for rotational motion

Thus, the angular velocity w(t) is given by

Example angular velocity of particle as function of time for rotational motion

The angular acceleration α(t) is given by

Example angular acceleration of particle as function of time for rotational motion


Velocity And Acceleration Of A Particle Traveling Around A Circle

The figure below shows a particle P traveling around a circle of radius R, with fixed center at O.

Velocity and acceleration of a particle traveling in a circle with rotational motion

Where:

w is the angular velocity associated with the rotational motion of the particle P. This quantity is measured in rad/s

α is the angular acceleration associated with the rotational motion of the particle P. This quantity is measured in rad/s2

ar is the radial acceleration of the particle P, pointing towards the center of the circle (this is commonly called centripetal acceleration)

vc is the circumferential velocity of the particle P (this is tangent to the circle)

ac is the circumferential acceleration of the particle P (this is tangent to the circle)


We can use the equations for curvilinear motion to derive expressions for ar , vc , and ac. Since R is constant we get

Velocity and acceleration of a particle traveling in a circle with rotational motion 2


Note that there is no radial component of velocity pointing towards, or away from the center of the circle. This is because the radius R is constant. If R were to change with time there would be a radial component of velocity pointing towards, or away from the center of the circle — From the page on curvilinear motion this radial component would be equal to dR/dt, which is the rate of change of the radius with time.


If you want to test your understanding and solve some problems go to Circular Motion Problems.


Rotational Motion In Three Dimensions

Rotational motion in three dimensions is mathematically more complicated than planar rotation about a fixed axis, since the axis of rotation can change direction. This type of rotation applies to bodies experiencing three-dimensional motion. However, it is generally only necessary (and practical) to account for such rotation when determining the velocity and acceleration of a point on a body that is experiencing three-dimensional motion. As a result, three-dimensional rotation does not lend itself to a stand-alone discussion here.

For an explanation of three-dimensional motion see A closer look at velocity and acceleration.

For an example of a solved problem involving three-dimensional rotation see Gyro Top.
